    Install Fedora on Xserve, part III

    1. July 2009
    2. Daily
    3. read 4854
    4. response 47

    Installation: Fedora 11 on my xserve1,1 (model 2006)

    // This installation is for Xserve1,1 2006 models only, it uses a 32BIT EFI. The Xserve2,1 2008 models uses a 64BIT EFI and requires an other installation approach.
    // But If you need help, Xserve1,1 or Xserve2,1, I can help.

    Here is my solution how I got Fedora 11 x86_64 on my Xserve1,1.
    But first of all I want to thank pxwpxw from ubuntuforums, he helped me a lot.

    First some downloads we need:
    Download 1: Fedora 11 Live CD Fedora 11 Live CD (X86_64) and burn the CD at 4x speed.
    Download 2: Latest refit for mac refit.dmg.
    Download 3: Grub settings and files grub.zip.

    Pre work:

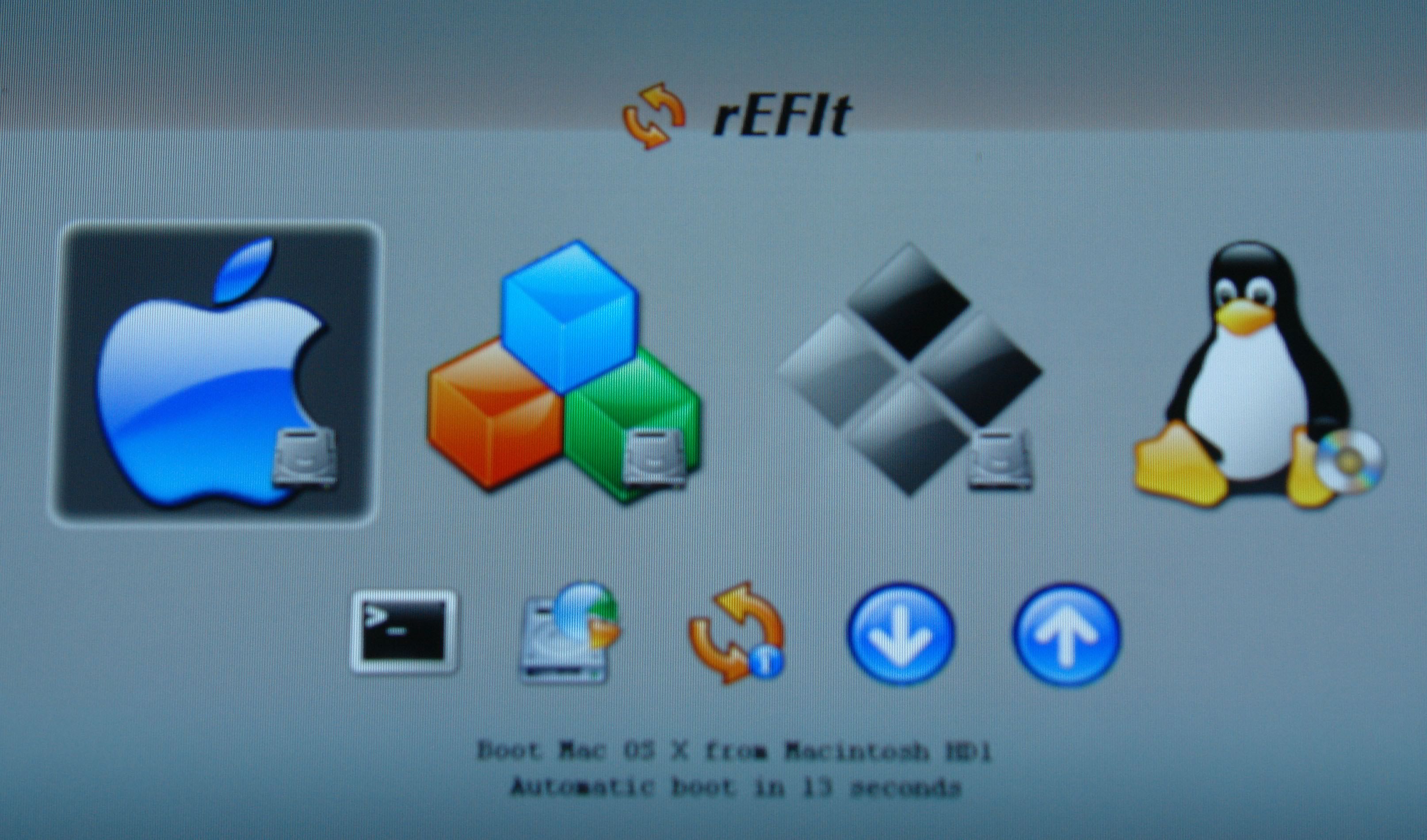

    Step 01: Install refit.
    Step 02: After installation you will see a folder named "efi" on your HD.
    Step 03: Open your terminal, go into root by su root enter your root password, than type bash /efi/refit/enable-always.sh and press enter, this will show you the grub screen at system boot.
    Step 04: While the Xserve1,1 only uses the 32bit efi we need a 32bit grub.efi file.
    Step 05: Unpack the downloaded grub.zip file and place 'grub-dumpbios' file and 'grubefi-karmic' folder into your "efi" folder. Efi will automatically detect the grub files and settings.
    Step 06: Open grub.cfg with your favorite text editor (I use BBedit)

    grub.cfg

    # grub.cfg pxw 20090623

    timeout=20
    default=0

    set F1=ctrl-x
    set F2=ctrl-c
    set color_normal=yellow/blue

    menuentry "Fedora-11-x86_64-Live CD boot" {
    fakebios
    root=cd0
    linux /isolinux/vmlinuz0 root=CDLABEL=Fedora-11-x86_64-Live rootfstype=auto ro liveimg rhgb single acpi=force irqpoll video=efifb nomodeset
    initrd /isolinux/initrd0.img
    }
    menuentry "REBOOT" {
    reboot
    }

    If you like you can make an extra partition from your startup HD (100GB will be enough for Mac OS X and the rest can be used for fedora)


    The installation:
    Step 07: Insert your Fedora live CD.

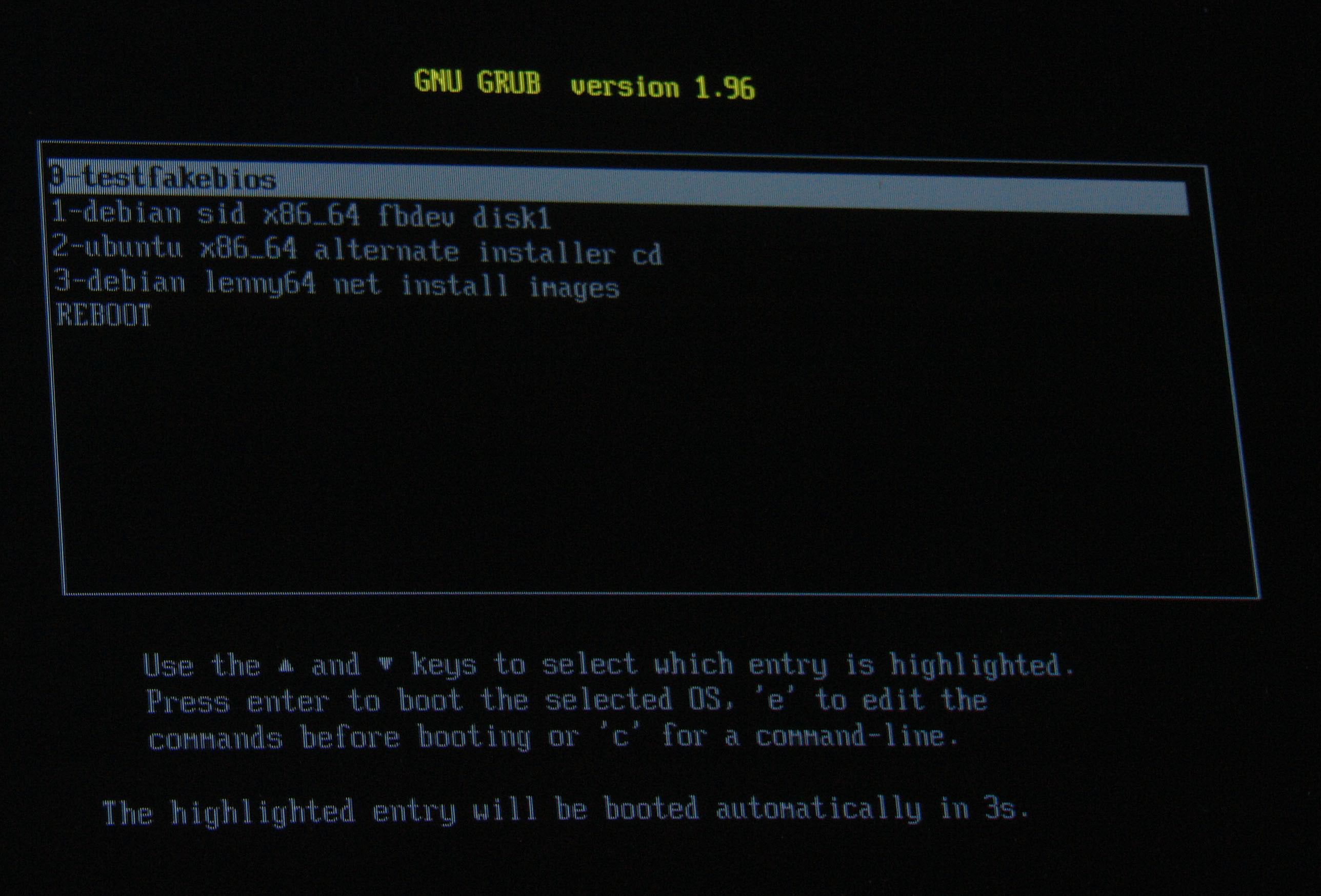

    Step 08: Restart your computer and wait till you see the grub screen.








    Step 09: Pick the grub button, that's the icon right from the Apple logo.
    Step 10: Pick "Fedora-11-x86_64-Live CD boot" from your list.








    Step 11: Let the boot codes roll, there will be some warning messages, not fatal and wait till you get to the #root@localhost:
    Step 12:

    [root@localhost]#
    [root@localhost]# nano /etc/X11/xorg.conf

    Section "Device"
    Identifier "fbdev driver"
    Driver "fbdev"
    EndSection
    (control+o is save and control+x is close)

    [root@localhost]# exit

    Step 13: Fedora Live CD will now show the graphical interface, all will work.
    Step 14: Install fedora on your HD, choose your partition and press install (let me know and I can help you picking the right partition). Be aware: HardDisk 1 will be "sda" HardDisk 2 will be "sdb" You need to remember 2 sections. "/boot" partition (most of the time "sba3") and the OS partition "/" (This depands on your partition).

    Step 15: After installation reboot into Mac OS X.
    Step 16: Open your grub.cfg and add the following to the current list of menuentry.

    menuentry "Fedora 11 x86_64 HD boot to enter fbdev" {
    fakebios
    root=hd0,3
    linux /vmlinuz-2.6.29.4-167.fc11.x86_64 root=/dev/sda6 ro rhgb single acpi=force irqpoll video=efifb nomodeset
    initrd /initrd-2.6.29.4-167.fc11.x86_64.img
    }

    You notice the "hd0,3", this is the /boot partition and "/dev/sda6" this is the OS partition (sda6 is my os partition, change it to yours) Save grub.cfg

    Step 17: Restart your computer and follow step 08 till 11.
    Step 18:

    [root@localhost]#
    [root@localhost]# nano /etc/X11/xorg.conf

    Section "Device"
    Identifier "fbdev driver"
    Driver "fbdev"
    EndSection
    (control+o is save and control+x is close)

    [root@localhost]# reboot

    Step 19: At the grub menu pick the OSX icon to boot Mac OS X.
    Step 20: Open grub.cfg and add the following to the menuentry.
    Step 21:

    menuentry "Fedora 11 x86_64 HD Final Boot" {
    fix_video
    fakebios
    root=hd0,3
    linux /vmlinuz-2.6.29.4-167.fc11.x86_64 root=/dev/sda6 nomodeset xdriver=fbdev ro acpi=force irqpoll video=efifb noefi
    initrd /initrd-2.6.29.4-167.fc11.x86_64.img
    }

    Step 22: Restart and boot into Fedora, see step 10. But than pick "Fedora 11 x86_64 HD Final Boot"
    Step 23: You're done.
